Introduction
In the world of electrical engineering and manufacturing, transformer design requires materials that offer both conductivity and durability. One such material that has garnered significant attention is 1060 aluminum strip. Known for its exceptional electrical and thermal conductivity, this aluminum alloy is frequently employed in transformer windings. In this article, we’ll explore the properties of 1060 aluminum strip and its distinct advantages in transformer applications.

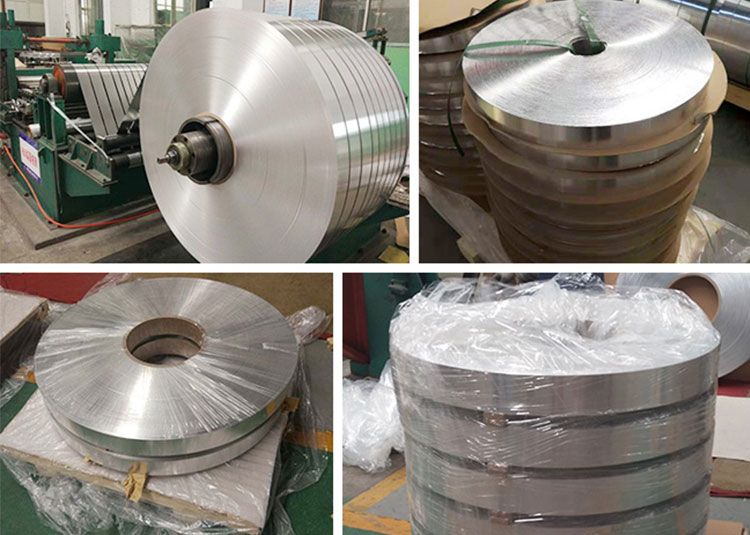

What is 1060 Aluminum Strip?
1060 aluminum strip is an alloy that primarily consists of 99.6% aluminum, documented as part of the 1000 series in the aluminum standard. This composition allows for remarkable conductivity and excellent malleability, making it suitable for various applications including transformer windings. The lightweight nature of aluminum makes it more attractive than copper in many cases, especially in applications where minimizing weight is crucial.
Benefits of Using 1060 Aluminum Strip in Transformer Windings
-
High Electrical Conductivity: 1060 aluminum strip exhibits superior conductivity, rivaling that of copper. This characteristic is essential for transformer windings, where efficient electricity transport without significant losses is crucial.
-
Cost-Effectiveness: In comparison to copper, aluminum is less expensive. Using 1060 aluminum strip not only reduces material costs but also leads to overall economical transformer manufacturing without sacrificing quality or efficiency.
-
Lightweight: The lightweight attributes of aluminum help reduce transformer weight. This is especially advantageous in applications where transformer transportation and installation present challenges.
-
Corrosion Resistance: Aluminum naturally forms a protective oxide layer that enhances its resistance to corrosion. This makes 1060 aluminum strips a reliable choice for transformers operating in various environmental conditions.
-
Manufacturability: 1060 aluminum strips can be easily manipulated into various shapes and sizes needed for transformer winding, allowing for great versatility.
Applications of 1060 Aluminum Strip in Transformers
Due to its favorable characteristics, the 1060 aluminum strip is commonly used in several transformer types, including:
- Oil-filled transformers: Here, the excellent thermal conductivity of aluminum assists in efficiently transferring heat.
- Distribution transformers: Their lightweight nature helps reduce material costs in community installations.
- Switchgear transformers: This strip aids in minimizing space requirements while ensuring performance.
