5754 Aluminum Coil

5754 ALUMINUM COIL DESCRIPTION:

5754 Alumiunm alloy is the least alloyed (highest composition % of aluminium), but only by a small amount. It is used in similar applications. As a wrought alloy, it can be formed by rolling, extrusion, and forging, but not casting. It can be cold worked to produce tempers with a higher strength but a lower ductility. Aluminum 5754 has excellent corrosion resistance, especially to seawater and industrially polluted atmospheres.

5754 ALUMINUM COIL CHEMICAL COMPOSITION:

Elements	Si	Fe	Cu	Mn	Mg	Cr	Zn		Ti	Others			Al
Content(max)	0.40	0.40	0.10	0.50	2.6-3.6	-	0.20		0.15	0.15			94.2-97.4

5754 ALUMINUM COIL PROPERTIES:

Alloy	Temper	Thickness(mm)	Width(mm)	Length(mm)	Typical products
5754 aluminum coil	O,H12,H14, H16,H18,H19, H22,H24,H26, H28,H32,H34 H36,H38,H111, H112,H114,H 116,H321	0.15-3.0	20-2600	500-16000	Railway passenger inside and outside wall, floor, panels and other

5754 ALUMINUM COIL APPLICATION:

1、5754 aluminum coil is widely used for welding structures, storage tanks, pressure vessels, ship structure and offshore facilities, transport tanks.

2、 Easy coloring in post-processing makes it often use to produce high-end doors and windows. For same area, Al-Mg alloy doors and windows are much lighter than other materials. The 5754 aluminum products which manufactured by Haomei Al.

RELEVANT GRADE OF 5754 ALUMINUM COIL

Relevant grade of 1050 Aluminum Coil
1050 aluminum coil 1060 aluminum coil 1100 aluminum coil 3003 aluminum coil	3005 aluminum coil 3105 aluminum coil 5052 aluminum coil 5754 aluminum coil

5754 ALUMINUM COIL PACKING:

5754 aluminum coil of Haomei Aluminum. meet the export standard. Plastic film and brown paper can be covered at customers’ need. What’s more, wooden case or wooden pallet is adopted to protect products from damage during the delivery. There are two kinds of packaging, which is eye to wall or eye to sky. Customers can choose either of them for their convenience. Generally speaking, there are 2 tons in one package, and loading 18-22 tons in 1×20′ container, and 20-24 tons in 1×40′ container.

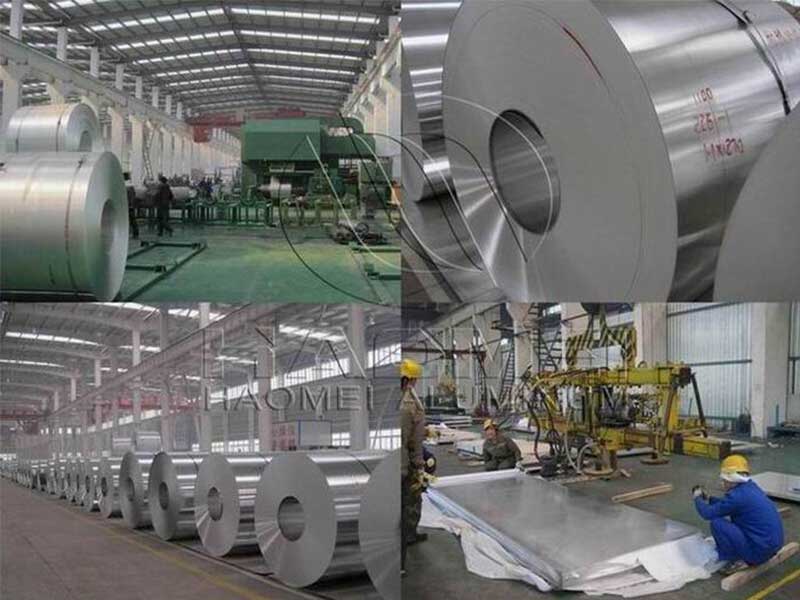

As a China-based 5754 aluminum coil manufacturer and supplier, we at Haomei also produce aluminum foil, coated aluminum coil, aluminum plate, anodising aluminum sheet, embossed aluminum sheet, etc. For more detailed information, please continue browsing our website or feel free to contact us directly.
