Aluminum coils are essential materials across various industries due to their versatility, strength, and corrosion resistance. Among these, 5052 H26 aluminum coil stands out as a preferred choice for manufacturing trailers. Known for its excellent formability, durability, and resistance to marine environments, this aluminum alloy serves diverse applications, addressing both structural and aesthetic demands effectively.

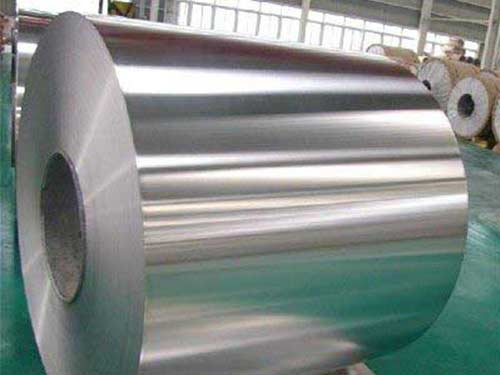

What Is 5052 H26 Aluminum Coil?
5052 aluminum alloy belongs to the 5xxx series, which contains magnesium as its primary alloying element. It combines good mechanical properties with exceptional corrosion resistance, particularly in saltwater or marine atmospheres. The H26 designation denotes a strain-hardened temper with approximately a quarter hard condition, meaning the coil has undergone both cold working and partial annealing, offering a balance between strength and ductility.
This temper is particularly suited for applications where moderate strength, high bendability, and resistance to environmental factors are critical - reasons for its widespread use in trailer construction.
Functions and Benefits in Trailer Applications
When it comes to trailer manufacturing, the 5052 H26 aluminum coil provides multiple benefits:
- Corrosion Resistance: Its excellent resistance to saltwater and road salts protects trailers from oxidation and rust, ensuring long service life.
- Strength and Toughness: Moderate strengthening allows it to handle shocks, vibrations, and load stresses during transport without cracking or deformation.
- Lightweight: Aluminum's inherent lightweight quality reduces the trailer's gross weight, resulting in improved fuel efficiency and handling.
- Formability: The H26 temper offers enough ductility to fashion complex body parts and sections seamlessly without compromising structural integrity.
- Low Maintenance: Trailers made with this alloy are easier to clean and maintain, lowering ownership costs.
Collectively, these characteristics make the 5052 H26 aluminum coil an exceptional choice in building trailer panels, floors, siding, and body components.
Typical Applications
The 5052 H26 aluminum coil is vastly used not only for trailers but in various other sectors demanding durability and resistance:
- Cargo trailer panels including utility trailers, flatbeds, and refrigerated trucks
- Boat or marine trailers because it withstands turbo salty, wet conditions
- Roofing and siding in special-purpose vehicle assemblies
- Light to moderate structural parts where moderate tensile strength suffices
- Decorative elements which require flawless surface finishing while retaining strength
The flexibility of the excess properties herald it out as a balanced metal for trucking and hauling solutions.
Technical Specifications
parameters improves selection and ensures the alloy suits your project demands perfectly. Below is a detailed view of its important technical attributes.
| Property | Value |
|---|---|
| Alloy | 5052 |
| Temper | H26 (Strain-Hardened, ≤¼ Hard) |
| Density | 2.68 g/cm³ |
| Tensile Strength (Rp0.2) | 170 MPa (min) |
| Ultimate Tensile Strength | 228 MPa (typical) |
| Elongation at Break | Around 6-10% |
| Hardness (HV) | Approximately 75-90 |
| Thermal Conductivity | 138 W/m-K |
| Electrical Conductivity | About 35-40 % IACS (International Annealed Copper Standard) |
| Melting Point | 605 - 645°C |
Chemical Composition
The chemical profile validates purity and performance standards, providing predictability in processing and service.
| Element | Content Range (%) |
|---|---|
| Magnesium (Mg) | 2.2 – 2.8 |
| Chromium (Cr) | 0.15 – 0.35 |
| Iron (Fe) | ≤ 0.4 |
| Copper (Cu) | ≤ 0.1 |
| Manganese (Mn) | ≤ 0.1 |
| Silicon (Si) | ≤ 0.25 |
| Zinc (Zn) | ≤ 0.1 |
| Titanium (Ti) | ≤ 0.03 |
| Aluminum (Al) | Remainder |
Implementation Standards
Compliance with international manufacturing and quality control standards assures users about reliability and interchangeability of the alloy:
| Standard | Description |
|---|---|
| ASTM B209 | Specification for Aluminum and Aluminum-Alloy Sheet and Plate standards |
| AMS-QQ-A-250/8 | Aluminum alloy sheet, plate and strip styling specifications |
| JIS H4000 | Japanese standard for aluminum alloy sheets, strips and plates |
| EN 485 | Aluminum and aluminum alloys-for cold rolled products |
Adherence to these protocols supports enhanced quality control, leading to consistent performance across applications and ensuring customer trust.
Alloy Tempering and Mechanical Characteristics
For the H26 temper, the coil undergoes work hardening combined with slight annealing to improve toughness, particularly important for accidental overload during usage.
| Temp Condition | Description |
|---|---|
| O | Annealed (Soft and ductile, minimum strength) |
| H14 | Strain-hardened to half hard (medium strength) |
| H26 | Strain-hardened and partially annealed (quarter hard, balanced strength & ductility) |
| H32 | Strain-hardened and stabilized operability near H34 |
| H34 | Strain-hardened and moderately hard |
Typical mechanical properties for H26 temper alloy 5052 include a yield strength of approximately 170 MPa and a tensile strength of around 228 MPa, making it robust enough for rigorous trailer field environments.
